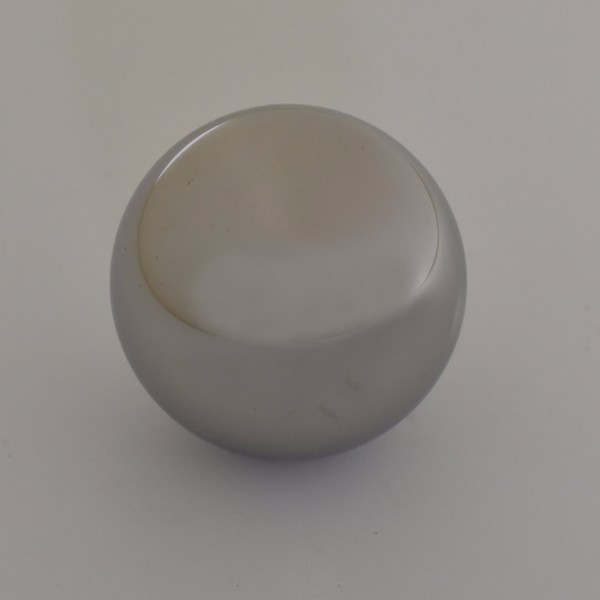

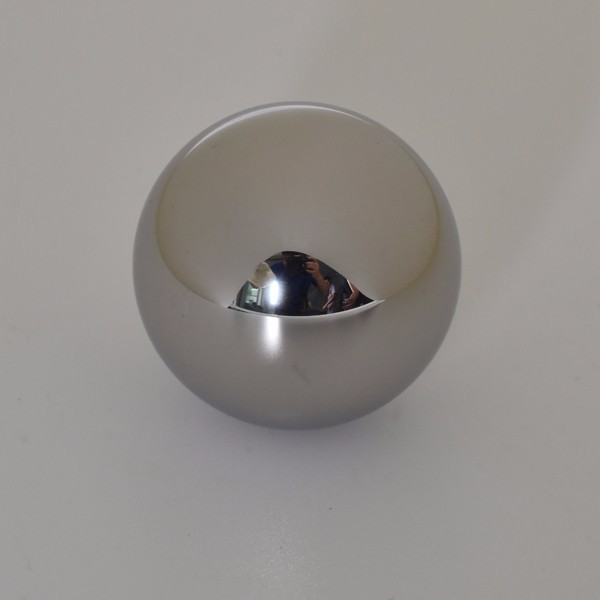

Cobalt Chrome Alloy Valve Balls

Cobalt Chrome Alloy API Valve Balls are engineered for reliable performance in demanding environments, crucial for oil and gas applications. With advanced R&D and precise manufacturing, we deliver superior-quality valve balls that meet API standards.

Brand: TNM
Product origin: China
Delivery time: 30days
Supply capacity: 2000pcs/month

Information

The valve balls are made of Cobalt Alloy Grade 20, with high hardness and super wear and corrosion resistance.

What is the Details of our Cobalt Chrome Alloy ball?

Material :	Cobalt Chrome Alloy
Process :	Powder Metallurgy , it is short for PM
Hardness:	56-60HRC
Density :	≥8.7 g/cm ³
Size :	10-60 mm
Properties :	Wear and corrosion resistance, high temperature resistance
Application :	Oil well pump components , wear and corrosion resistance parts
Instructions :	Drawing made upon cutomers request
Usage :	one balls with one valve
Tolerance control :	turning or grinding surface , tolerance upon drawing
Production lead time	Samples 10 days , normal order 30 days
Production capacity :	20,000pcs one month.
Package :	carton or wooden case , pallet for export

Chemical composition :

Grade

C

Mn

Si

Cr

Ni

Mo

W

Co

Fe

P

S

Density

(g/cm3)

Hardness

(HRC)

Cobalt Alloy 20

2.2-3.0

-

2.0

30-34

3.0

1.0

14-18

Bal.

3.0

≤0.05

≥8.7

56-60

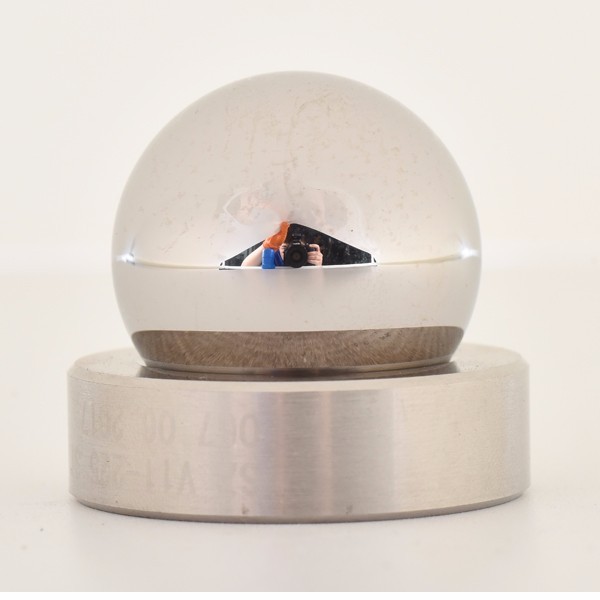

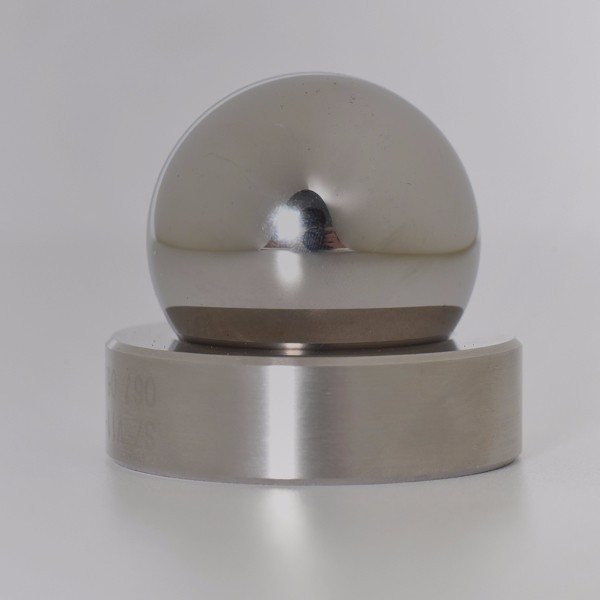

API Standard Data :

No.	Specifications	Seat Dimensions OD/ID×H (in)	Weight (g/pc)	Ball Dimensions	Weight (g/pc)
1	VII-106	0.793/0.460×0.500	22.81	15.88	18.44
2	VII-125	0.918/0.550×0.500	29.55	19.05	31.84
3	VII-150	1.168/0.670×0.500	49.53	23.83	62.32
4	VII-175	1.388/0.825×0.500	68.13	28.58	107.51
5	VII-200	1.478/0.960×0.500	69.05	31.75	147.40
6	VII-225	1.720/1.060×0.500	100.34	34.93	196.27
7	VII-250	2.010/1.310×0.500	127.04	42.88	363.10
8	VII-375-1	3.072/1.700×0.750	536.94	57.15	859.63
9	VII-375-2	3.072/1.880×0.750	484.12	57.15	859.63
